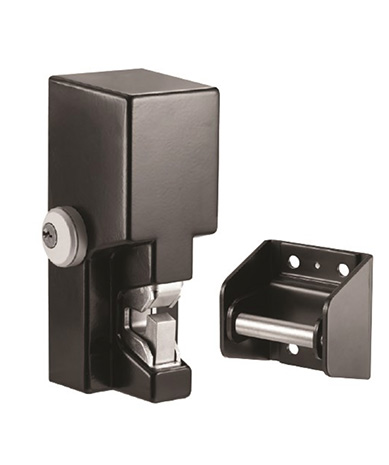

Securitron GL1 Gate lock

The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications.

  • Suitable for electrical and manual operation
  • Ideal for indoor or outdoor gates where preload is a concern.
  • Great for swinging or sliding gates
  • Applicatiosn for vehicle, pedestrian, or stock gate access control.
Categories: ,
  • Holding Force: 2000lbs [907kg]
  • Dimensions: 2-3/4″L x 7-1/4″W x 3-1/4″D
  • Electrical:
    -12 Volts Initial (Peak): (~1.0 sec.) @ 870mA – Reduced: 290mA Power
    Consumption: 3.5 Watts
    -24 Volts Initial (Peak): (~1.0 sec.) @ 720mA – Reduced: 170mA Power
    Consumption: 4.1 Watts
  • Operating temperature: -58 to +167F [-50 to +75C]
    -Indoor or outdoor use
  • Shipping Weight: 6lbs [2.72kg]
  • Finishes: Black Finish
  • 2,000 lbs holding force
  • Operates under preload up to 100lbs
  • Automatic dual voltage – no field adjustment required
  • Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
  • Self-aligning receiver (+/- 1/2″ horizontally) helps compensate for gate misalignment and sag
  • Tamper resistant cast housing
  • Optional latch status monitor
  • Surface mount
  • MagnaCare® lifetime replacement, no fault warranty
  • Holding Force: 2000lbs [907kg]
  • Dimensions: 2-3/4″L x 7-1/4″W x 3-1/4″D
  • Electrical:
    -12 Volts Initial (Peak): (~1.0 sec.) @ 870mA – Reduced: 290mA Power
    Consumption: 3.5 Watts
    -24 Volts Initial (Peak): (~1.0 sec.) @ 720mA – Reduced: 170mA Power
    Consumption: 4.1 Watts
  • Operating temperature: -58 to +167F [-50 to +75C]
    -Indoor or outdoor use
  • Shipping Weight: 6lbs [2.72kg]
  • Finishes: Black Finish
  • 2,000 lbs holding force
  • Operates under preload up to 100lbs
  • Automatic dual voltage – no field adjustment required
  • Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
  • Self-aligning receiver (+/- 1/2″ horizontally) helps compensate for gate misalignment and sag
  • Tamper resistant cast housing
  • Optional latch status monitor
  • Surface mount
  • MagnaCare® lifetime replacement, no fault warranty
