Description
Automatic Swing Door Operator proven to handle commercial, retail and all heavy traffic locations. Check out the tabs below to view the impressive specifications and technical details that make this door operator and go to solution.
Unlocking solutions since 1940

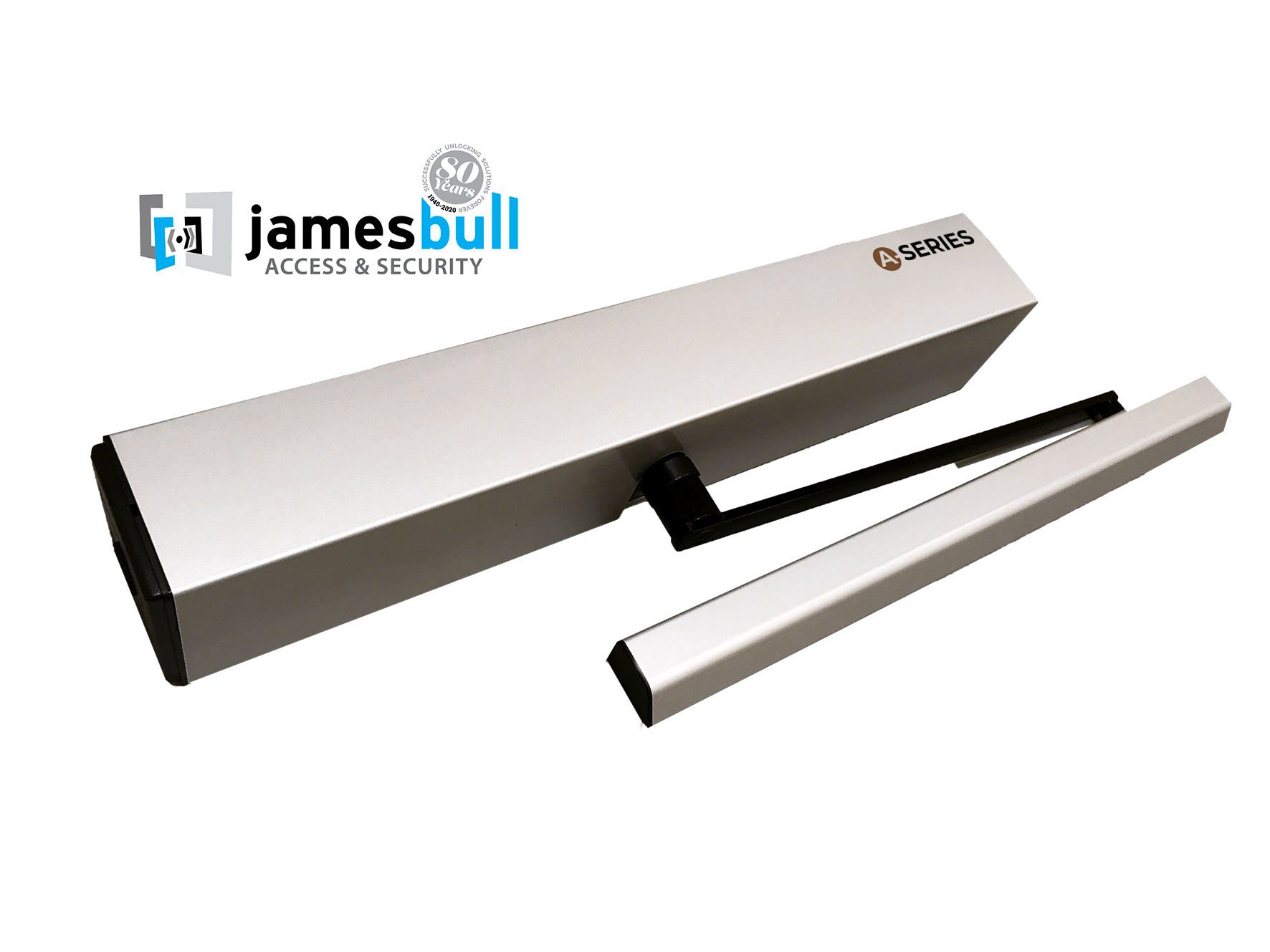

A-Series 200SW Automatic Swing Door Operator
This heavy duty automatic swing door operator, is perfect for any high use commercial building where you are looking for a way to manage swing doors, with Spring return feature.
It is a highly capable unit that can be managed by sensors, press buttons, card readers and infrared hand sensors.
APPROVED for E-core Fire Doors.
We can access and alternative automatic swing door operator model, SW165 that offers the same specifications and features without the Spring return function
Door type
Suitable for hinged doors that swing, either inwards , outwards or both ways
Actuator
Automatic actuator that is electrically assisted door closer or opener
Size
200 kg – up to 200kg weight or less
Operational modes
• Auto
• Hold Open
• Locked
• Manual
• Push and Go
• Remote
Drive functions
• Auto reverse
• Push and go
• Emergency stop
• 2 leaf Synchronise
• Interlock option
Control options
• Sensor
• Wired switch
• Key pad
• Fob/Card when linked to access control
• Touchfree access button
Included in the box
• Main operator unit
• Standard arm
• Slide arm
• Setting panel remote
Single Leaf Door
Standard arm
Pushing Left/Right
Single Leaf door
Slide arm
Left/Right Pull
Two leaf door
Two way traffic flow
Two alternate/independent drives
Two leaf door
Electrically linked
Standard arm push/Slide arm pull
Interlock door operation
Electrically connected doors
Configuration
Single Leaf 600-1200mm
Max weight 170kg
Opening
Open time 0.5-30Sec
Opening time 3-7Sec
Opening time 3-7Sec
Open angle 80-100deg
Noise <55Db
Power
AC 110V-220V +/-10%
24V DC motor, 100W Max
Fire rating
Please call for fire rating details
Description
Automatic Swing Door Operator proven to handle commercial, retail and all heavy traffic locations. Check out the tabs below to view the impressive specifications and technical details that make this door operator and go to solution.
Door type
Suitable for hinged doors that swing, either inwards , outwards or both ways
Actuator
Automatic actuator that is electrically assisted door closer or opener
Size
200 kg – up to 200kg weight or less
Operational modes
• Auto
• Hold Open
• Locked
• Manual
• Push and Go
• Remote
Drive functions
• Auto reverse
• Push and go
• Emergency stop
• 2 leaf Synchronise
• Interlock option
Control options
• Sensor
• Wired switch
• Key pad
• Fob/Card when linked to access control
• Touchfree access button
Included in the box
• Main operator unit
• Standard arm
• Slide arm
• Setting panel remote
Single Leaf Door
Standard arm
Pushing Left/Right
Single Leaf door
Slide arm
Left/Right Pull
Two leaf door
Two way traffic flow
Two alternate/independent drives
Two leaf door
Electrically linked
Standard arm push/Slide arm pull
Interlock door operation
Electrically connected doors
Configuration
Single Leaf 600-1200mm
Max weight 170kg
Opening
Open time 0.5-30Sec
Opening time 3-7Sec
Opening time 3-7Sec
Open angle 80-100deg
Noise <55Db
Power
AC 110V-220V +/-10%
24V DC motor, 100W Max
Fire rating
Please call for fire rating details
